AD25-A1
AD25-A1
RAN Advantage Series

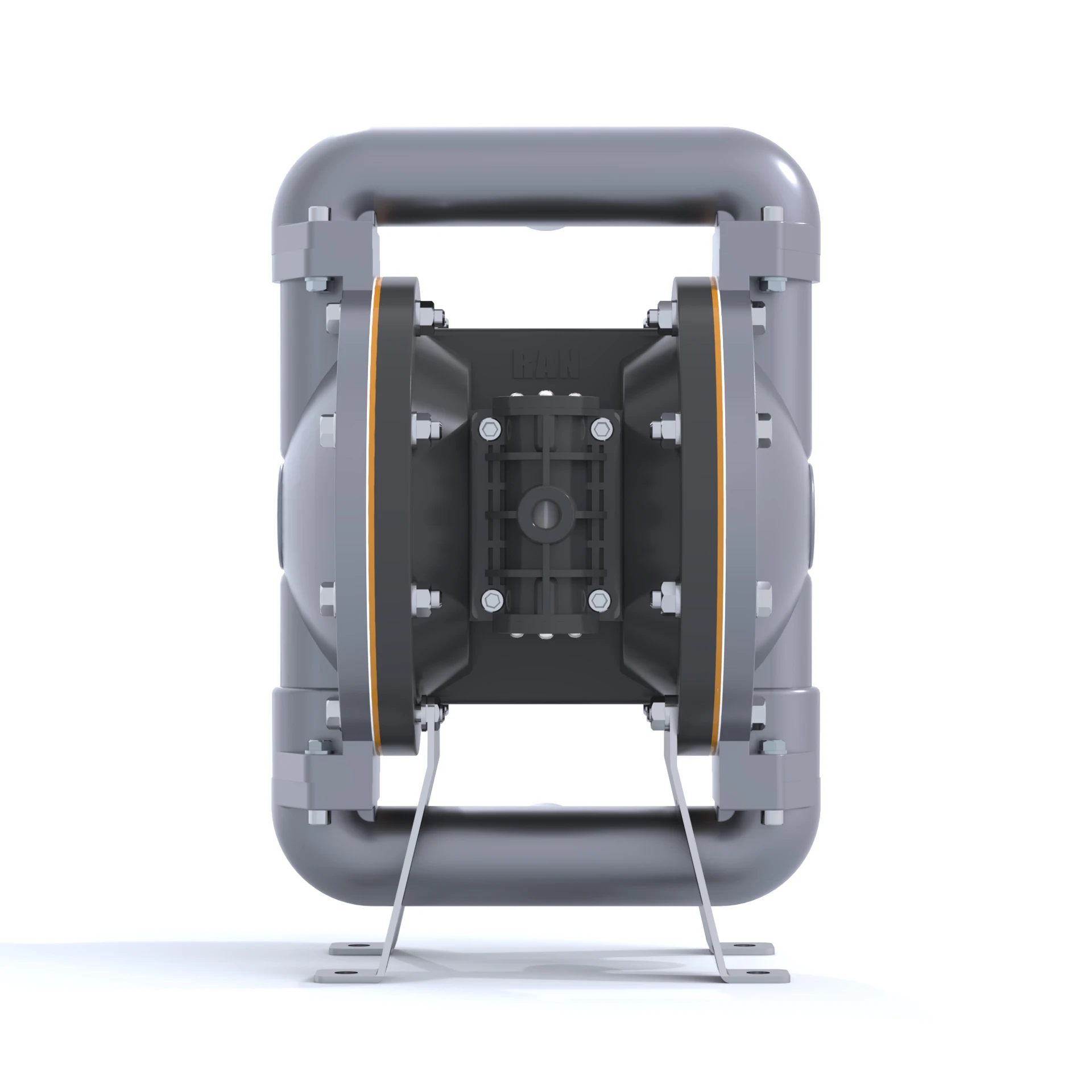

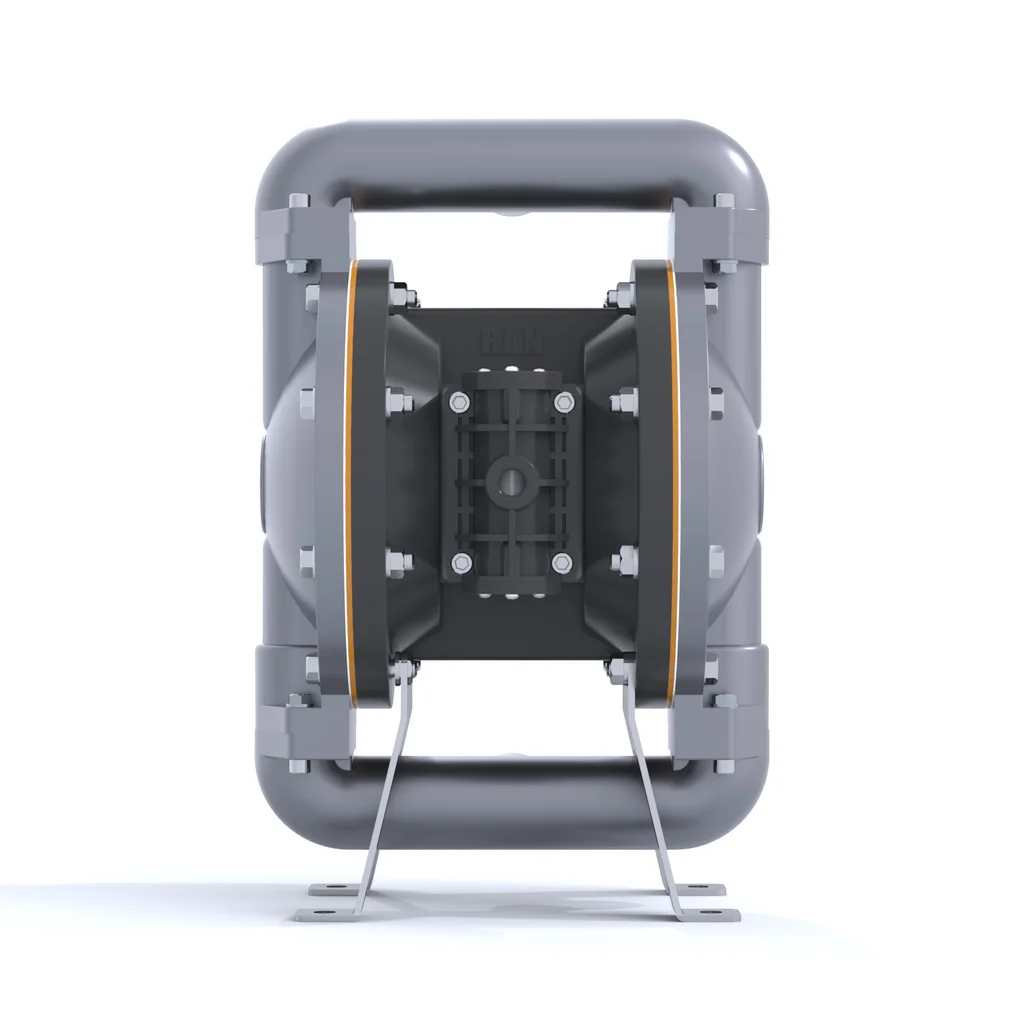

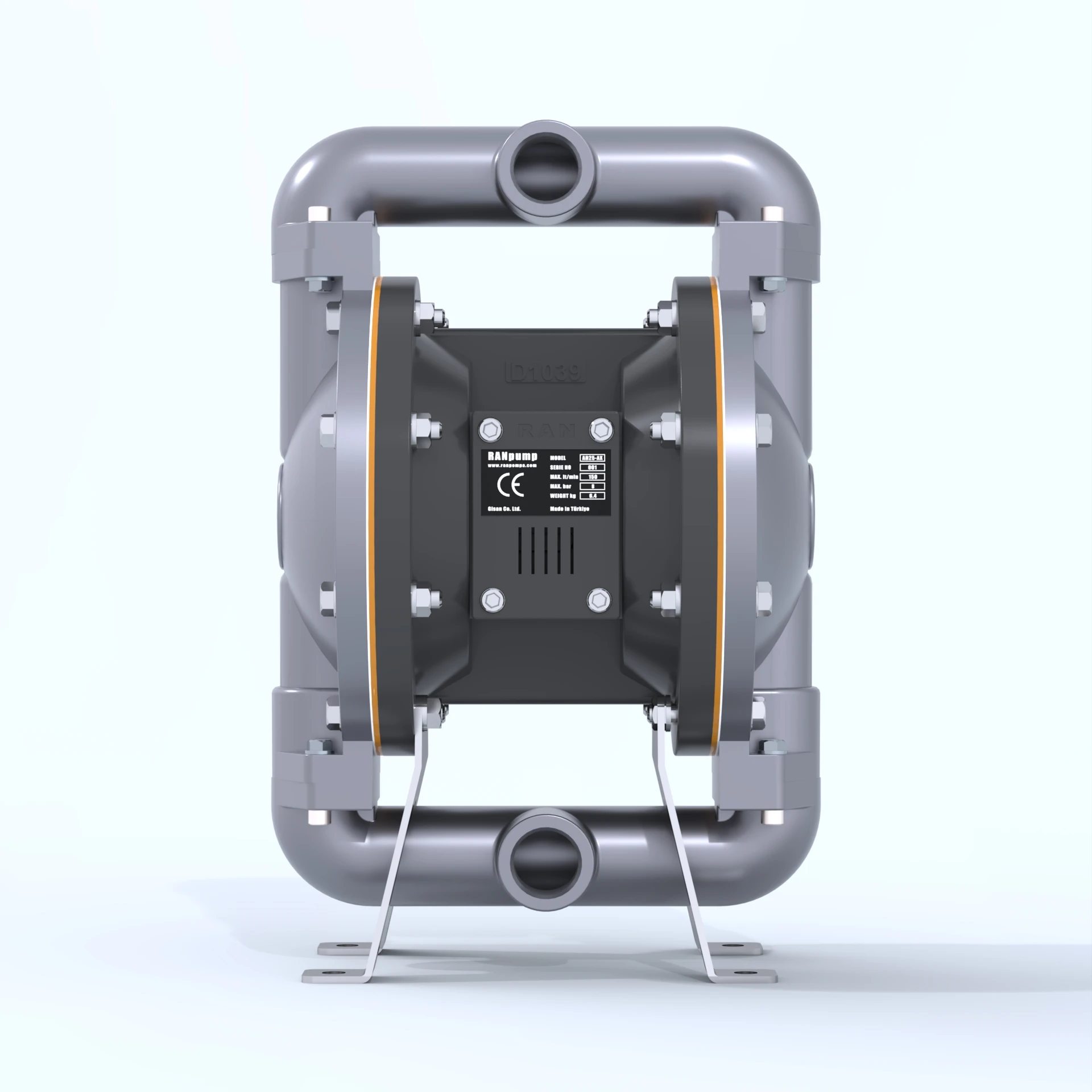

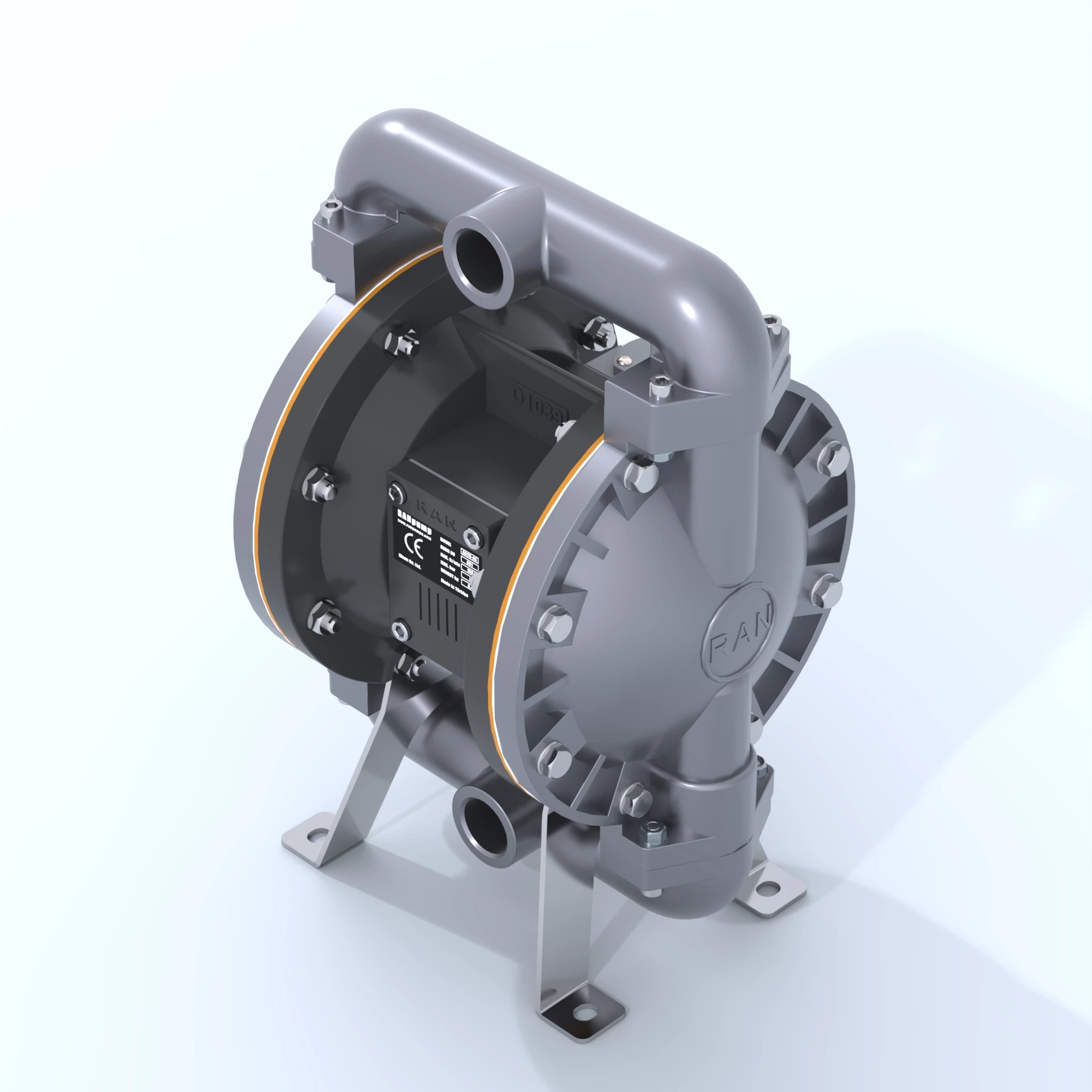

AD25-A1 model pump specifications
Technical Specifications
| Ratio | 1:1 |
| Max. Fluid Outlet Pressure | 8 |
| Fluid Inlet / Outlet Size | 1 |
| Body Material | Aluminium |
| Diaphragm Material | PTFE (Teflon®) |
| Max. Cycles Per Minute (CPM) | 200 |
| Maximum Flow Rate | 150 |
| Connection type | Threaded (NPT) |
| Air Inlet Size | 3/8 |
| Weight | 7 |
Product Details
The RAN 1" Advantage Series Aluminum Pump offers a cost advantage that can compete with the lowest-priced pumps on the market, while guaranteeing higher quality and long-lasting performance.
- Not a disposable product, but an investment → Operates reliably for a long time with low maintenance costs.
- Superior performance over competitors → Higher flow rate and suction lift.
- Continuous operation → Non-stalling air valve and leak-free design maintain pressure and save air.
- Protects your liquid → No leakage from connection surfaces, preventing product loss.
- Durable body → Aluminum body manufactured using die-casting, providing high strength and robustness.
- Pressure-resistant design → Thicker body design compared to competitors ensures reliable performance under high pressure.
The Advantage Series Aluminum Pump goes beyond low-cost pumps, offering high performance, durability, and long-lasting quality together.
